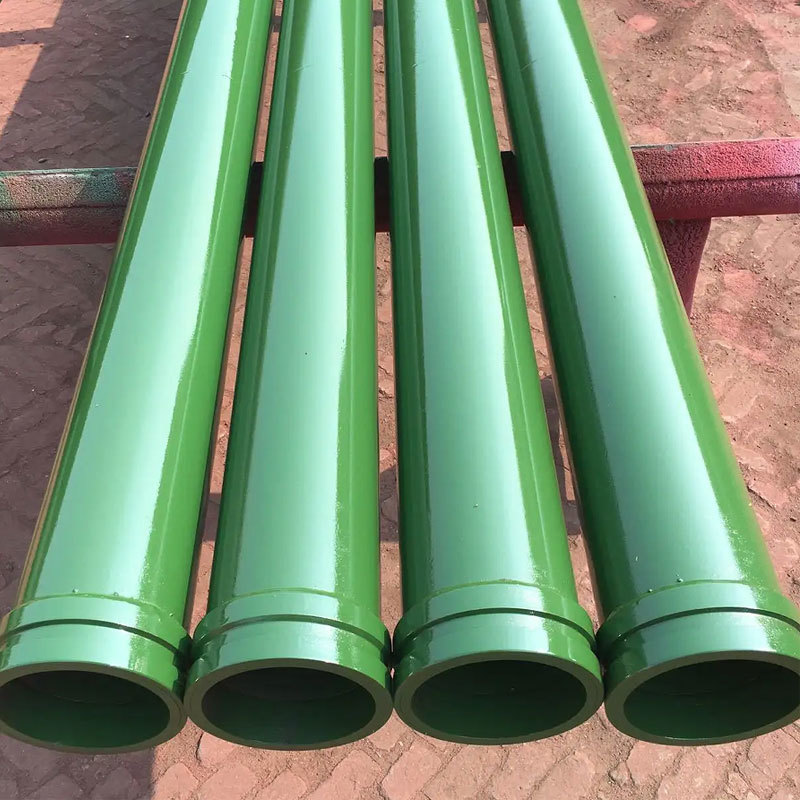

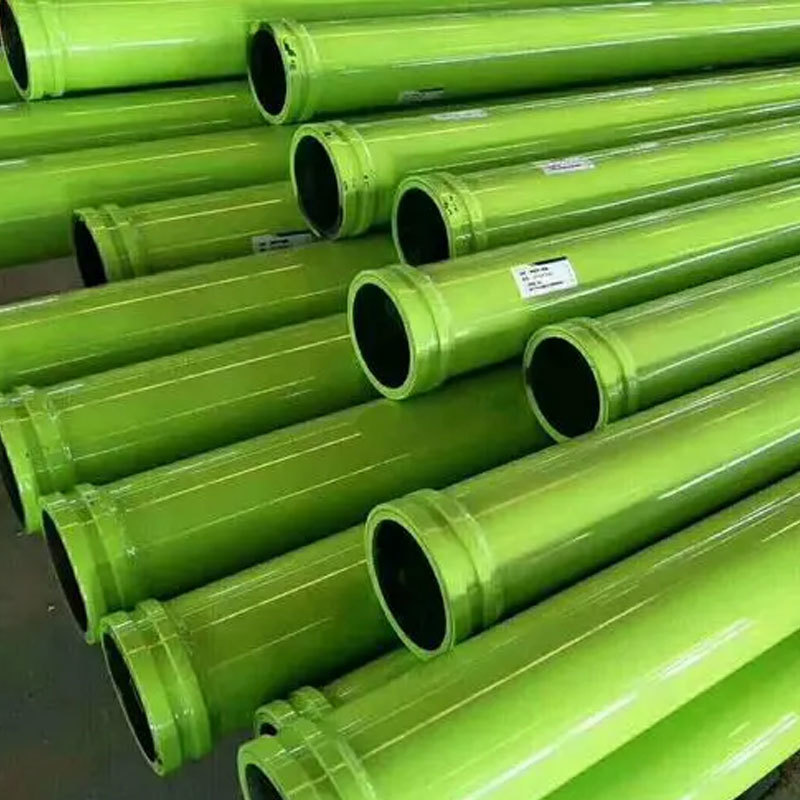

Wear Resistant Concrete Pump Delivery Pipe, also known as “arm tube, car pump tube, day pump tube” is used for the transportation of commercial concrete (referred to as “commercial”), generally used for high-rise buildings, high-speed rail, bridges and other buildings. The concrete wear-resistant pipe is an ideal wear-resistant and corrosion-resistant pipe for conveying concrete media because it fully exerts the characteristics of high strength, good toughness, impact resistance and good welding performance of the steel pipe.
Single layer high wear-resistant hardened straight pipe:
The superiority of this kind of product lies in the high wear resistance, and the material is 45Mn2, 55Mn alloy structural steel pipe.
The Wear Resistant Concrete Pump Delivery Pipe has better wear resistance and the service life is 3-5 times that of the ordinary pump tube. The appearance of the Wear Resistant Concrete Pump Delivery Pipe reduces the number of times the pump is replaced, which reduces the cost for the owner and has been unanimously recognized by the customers.
There are many kinds of Wear Resistant Concrete Pump Delivery Pipes, the most common ones are 45mn and 55mn, and the concrete transport capacity of 45mn Wear Resistant Concrete Pump Delivery Pipes is above 20,000 square meters. The 55mn material works better and the price is higher.
The thickness of the Wear Resistant Concrete Pump Delivery Pipe includes 4.5mm and 4.8mm. The wall thickness of 4.5mm is mainly applied to the pump truck under 40 meters. If your pump is more than 40 meters, please use the wall thickness of 4.8mm.
The Wear Resistant Concrete Pump Delivery Pipe is welded with alloy steel pipe. After high-temperature quenching treatment, the Wear Resistant Concrete Pump Delivery Pipe inner wall forms a wear-resistant layer of 2.0mm. The wear-resistant layer has a hardness of more than HRC60. The two ends are welded with a standard 125A flange, and the hardness is more than 60. Wear-resistant sleeves ensure the delivery of concrete.
Used for Concrete handling/ placement. For Concrete pump truck, concrete booms, concrete placement machines.
| Name | Size | Wall thickness (mm) |
Pipe Length (m) |
Working Pressure |
| St52 Seamless Steel Pipe | DN125 | 4.5 | 3 | 85bar |
| DN125 | 5.0 | 3 | 85bar | |
| DN125 | 6.0 | 3 | 85bar | |
| DN125 | 7.75 | 3 | 85bar | |
| DN125 | 8.0 | 3 | 85bar | |
| Schwing M/F Pipe | DN125 | 4.5 | 3 | 130bar |
| DN125 | 5.0 | 3 | 130bar | |
| DN125 | 6.0 | 3 | 130bar | |
| DN125 | 7.8 | 3 | 200bar | |
| Putzmeister ZX Pipe | DN125 | 4.5 | 3 | 130bar |
| DN125 | 5.0 | 3 | 130bar | |
| DN125 | 6.0 | 3 | 130bar | |
| DN125 | 7.8 | 3 | 200bar | |
| Single wall Pipe | DN125 | 4.5 | 3 | 85bar |
| DN125 | 5.0 | 3 | 85bar | |
| DN125 | 6.0 | 3 | 85bar | |
| DN125 | 8.0 | 3 | 85bar | |
| Twin wall Pipe | DN125 | 4.5 | 3 | 85bar |
| DN125 | 5.0 | 3 | 85bar | |
| DN125 | 6.0 | 3 | 85bar | |
| DN125 | 8.0 | 3 | 85bar |
Request a quote for Wear-resistant Concrete Pump Pipe
Email Qing.h@rlpipes.com | Phone / WhatsApp +86-13718779097 | WeChat 13718779097
